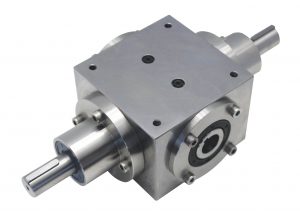

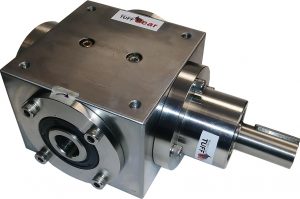

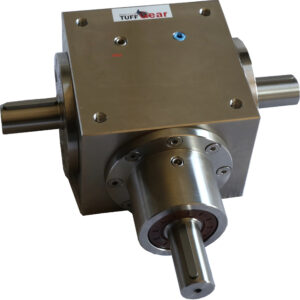

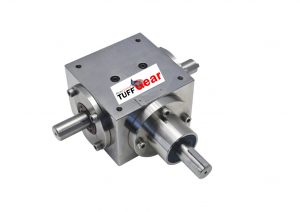

Tuff-Gear:Stainless Steel RTT25.4 and RTTH25.4 Spiral Bevel Gearbox Electropolish

RotoTimeRTT25.4 and RTTH25.4

Rototime RTT Brochuresite

Hollow 1" shaft, opposite-rotating solid shaft

416 Stainless Steel Electropolished, Hollow

High strength, Spiral bevel gearbox

Rototime- TuffGear

1:1 Gearbox

High precision Hollow Output

Spiral Bevel, Electropolished 416 Stainless Steel Gearbox. Solid and Hollow 1 inch shaft.

  • 316 or 416 Stainless Steel Housing
  • 50-360 Nm
  • 25.4mm (1 inch) Shaft
  • High load Tapered Bearing
  • Double Lip, UV protected Oil Seal
  • Wash-down ready

The Rototime RTT 25.4, RTTH25.4 Hollow is a high quality, low backlash, stainless steel, spiral bevel cubic gearbox. The gearbox is used for precision speed reduction, torque increaser or to manipulate direction of shaft rotation. The sophisticated electropolished (mirror like) modular housing design allows several mounting options, such as motor flange, metric/inch shaft or hollow shaft in any environment. The spiral bevel gears are heat treated and lapped for maximum strength, smooth rotation, and efficient tooth contact. The high axial ball bearings enable quiet operation with capacity to handle radial load. The double lip, UV coated oil seals insure environmental gear protection and no leak during pressure wash. The synthetic 460 oil enable safe operation of the gearbox. Available also with food safe oil!
Now Available with C-Face Motor plate and Coupling

C-Face Motor Adaptor

Rototime Stainless Steel RT25.4 with C-Face
