Hollow Shaft Bevel Gearbox

GTC-Rototime Servo/Stepper Gearbox

GTC-Rototime– Right-Angle, Hollow output shaft, Bevel Gearbox offer versatility in design. The GTC series comes standard with a motor adaptor plate to mount to any motor. Output ratio from 1:1-200:1.

The square housing is made with high strength Aluminum and black oxide. The precision cut spiral bevel gears are heat treated and lapped.

Features

  • Low backlash 1 arc-min
  • Space saving
  • Strong
  • Hollow or solid output shaft
  • 6 sizes up to 588 Nm
  • Ratio: 1-200

    Low Backlash Servo Gearbox

    Hollow Gearbox



    Solid shaft Gearbox

  •







Typical shaft options

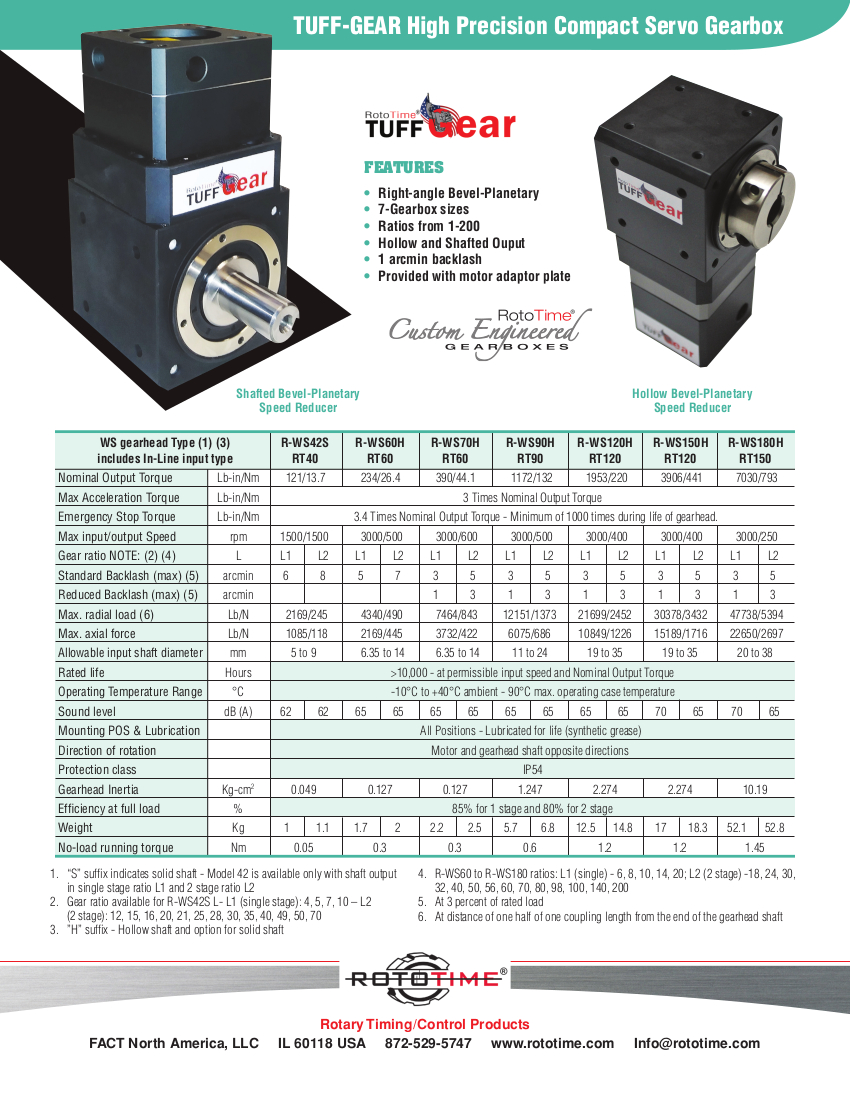

Tuff-Gear Bevel Gear Servo Gearbox

Hollow and Solid, Right-Angle High Precision Gearbox

1 arcmin, Servo Gearbox

Rototime High Precision Servo Reducer
Tuff-Gear Inline Planetary Reducer

Motor plate available standard with every gearbox
