Bevel and Servo Gear Box

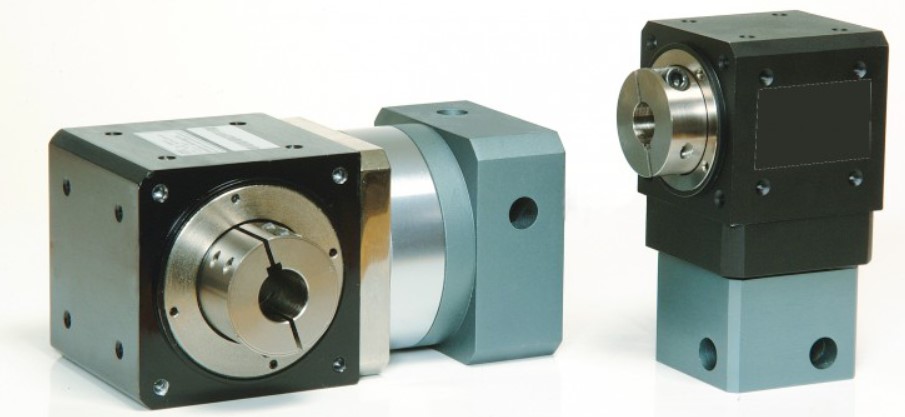

Hollow Shaft Bevel Gearbox

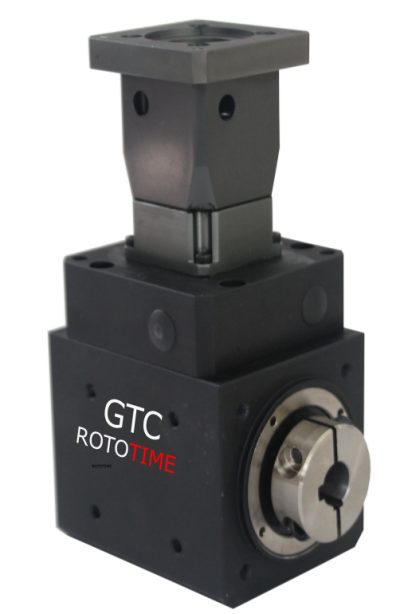

GTC-Rototime Servo/Stepper Gearbox GTC-Rototime– Right-Angle, Hollow output shaft, Bevel Gearbox offer versatility in design. The GTC series comes standard with a motor adaptor plate to mount to any motor. Output ratio from 1:1-200:1. The square housing is made with high strength Aluminum and black oxide. The precision cut spiral bevel gears are heat treated and lapped. Features

• Low backlash 1 arc-min
• Space saving
• Strong

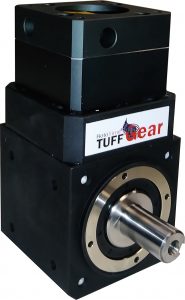

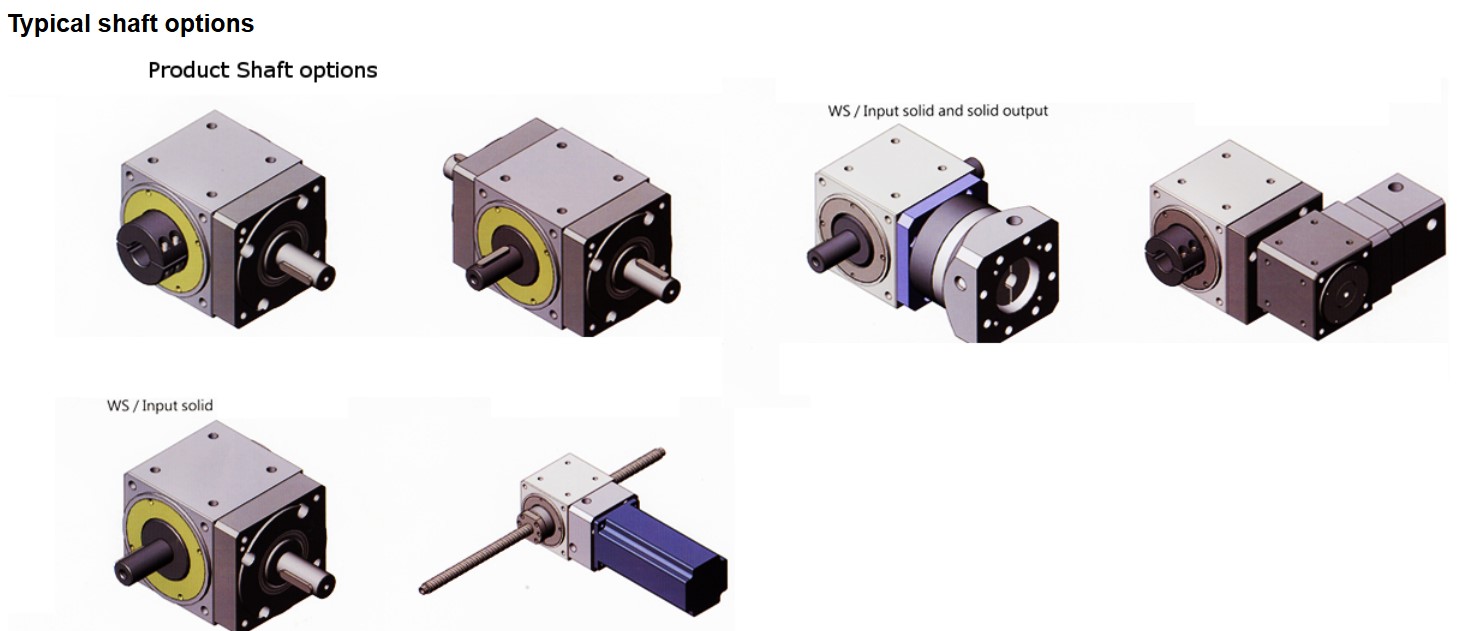

• Hollow or solid output shaft
• 6 sizes up to 588 Nm
• Ratio: 1-200
